Which lens?
Amongst the strengths of the Canon EOS system stays in the series of lenses easily offered– we make it 199 at the time of making up! Comparable to anything, with great alternative comes confusion, so here’s a quick guide to the range and a few of the important terms you’ll come across.
As quickly as upon a time, it was all fundamental. With the launch of the EOS system in 1987, the EF lens set up existed. This was the start of the single biggest native lens system for an interchangeable lens web cam. If you bought a Canon EOS web cam, you comprehended that any of the EF lens range would fit your web cam.
That stayed the specific very same for 16 years.
In truth, it’s still genuine– all EF lenses fit all EOS camera, one technique or another.
Then, in 2003, with the EOS 300 D Canon highlighted the EF-S lens set up. This was performed in order to bring lighter, more budget plan friendly lenses to match the new, budget plan friendly web cam– the EOS 300 D was the extremely first sub-Ј1000 DSLR. EF-S lenses are produced for a specific area of EOS DSLR web cam, especially those with the smaller sized APS-C picking up system.
The EF-S set up remains in truth a hybrid– it not simply accepts the dedicated EF-S lenses, nevertheless similarly the preliminary EF lenses.
And here, the confusion started.
Quick forward another 9 years, and the EF-M lens set up existed. This is a dedicated lens set up for Canon’s new APS-C mirrorless system, the EOS M-series. You can link EF and EF-S lenses, nevertheless through an adapter– the EOS-EF M adapter.
Then, in 2018, a fourth new lens set up for Canon’s new total frame mirrorless– the RF lens set up. When once again, you can link EF and EF-S lenses, nevertheless through a different set up adapter– the EOS-EF R.
Whilst the EOS R can accept EF-S lenses, the web cam quickly alters to a cropped mode, to offset the smaller sized image circle produced by the smaller sized EF-S lenses.
Canon EOS 70 D For Dummies
With a dSLR ( digital single lens reflex) web cam, like the Canon EOS 70 D, you can change lenses to match different photographic requirements, going from an extreme close-up lens to a super-long telephoto. In addition, a dSLR lens has a focusing ring that uses you the option of focusing by hand rather of relying on the web cam’s autofocus system.
Whatever lens you choose, follow these actions to link it to the web cam body:
Turn the web cam off and eliminate the cap that covers the lens set up on the front of the web cam.
Remove the cap that covers the back of the lens.
Discover the suitable lens setting up index on the web cam body.
When connecting the 2,

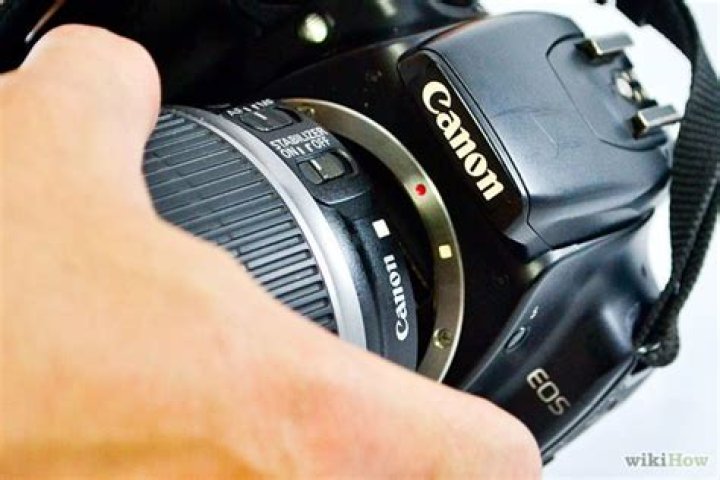

A setting up index is a mark that notifies you where to line up the lens with the web cam body. Your web cam has 2 of these marks, one red and one white, as shown in the following figure.
Which marker you make use of to align your lens relies on the lens type:
Canon EF-S lens: The white square is the setting up index.
Canon EF lens: The red dot is the setting up index.
With a non-Canon lens, check the lens handbook for help with this action.
Line up the setting up index on the lens with the one on the web cam.
The lens similarly has a setting up index. The above figure exposes the one that appears on the 18–135 mm EF-S plan lens.
Keeping the setting up indexes lined up, put the lens on the web cam’s lens set up.
Turn the lens clockwise till it clicks into place.
To put it just, turn the lens towards the lens-release button, recognized in the figure above.
To eliminate a lens, turn the web cam off, press the lens-release button, grip the rear collar of the lens, and turn the lens towards the shutter button side of the web cam. When you feel the lens release from the set up, raise the lens off the web cam. Area the rear protective cap onto the back of the lens, and if you aren’t putting another lens on the web cam, cover the lens set up with its protective cap, too.
Continuously alter lenses in a neat environment to reduce the threat of getting dust and dirt inside the web cam or lens. For consisted of security, point the web cam a little down when performing this maneuver to help prevent flotsam in the air from being drawn into the web cam by gravity.
There are 3 different type of lenses for Canon consumer interchangeable lens camera, these include EF, ef-m and ef-s. When it comes to choosing your lens, you need to ensure that you are picking a lens that will work with your web cam.
Is it ideal?
The most hassle-free technique to find which lenses your web cam will accept is to have a look at the indicators on lens set up on the front of your web cam.
Simply eliminate the lens from your web cam by pressing the lens release button and twisting the lens anti-clockwise.
if you see a red circle on the lens install your web cam will accept EF lenses.
If you see a red circle and a white square it will accept EF-S lenses,
if you see a white circle it will accept simply EF-M lenses.
What are all the different lens types that are easily offered?
The preliminary EOS web cam system existed in1987 At its heart was the EF lens set up, connecting lenses to the web cam body in an entirely electronic technique for the extremely very first time. Apart from the physical connection in between these 2 aspects all interaction is electronic, making it possible for incredibly exact, real-time info transfer. Canon wound up being the extremely first to build the motor that drives the focus inside each lens, rather of making use of a motor inside the web cam body. Even with continuous development and development of focusing systems, Image Stabilizer developments, professional lens elements and climate condition sealing, the preliminary EF set up design remains the very same. All EF lenses deal with every EOS web cam ever produced, including the new EOS M series when made use of with the EF to EOS M Mount adapter.
EF– S lenses are especially produced for EOS DSLR develops with a more compact sized picking up system– supplying lenses that are light-weight, versatile and extremely portable. With the EF– S range, Canon’s engineers took advantage of the APS– C picking up system size to produce lenses that are not simply lighter and smaller sized, nevertheless similarly utilize expert photographers far greater wide-angle alternative. Owners of EF– S set up camera have access to an overall offering of light-weight lenses extending from 16 mm to 400 mm (35 mm equivalent).
EF-M set up lenses existed with the preliminary EOS M series of camera in2012 A lot more compact compared to the EF and EF-S range they are produced particularly for use with EOS M camera. Offering a range from ultra-wide to telephoto to macro they’re portable sufficient to take all over, they’re a great alternative for those taking a more ingenious method to day-to-day photography.
