Diagonal Text Using Text Boxes
There are several reasons why you might want to make diagonal text in Word. The first is to display a diagonal watermark across each page of your document, in the background. Or you might just want to spice up the presentation. Whatever the reason, making the text diagonal is pretty easy, and there are a couple of ways to do it.
Probably the easiest way is to do it is to insert your text into a text box and then rotate the text box. Go to the Insert tab, and in the Text group click Text Box.
In the gallery that appears just select Simple Text Box. The text box appears on the page with some default text in it. You can start typing to replace the dummy text with your own. Don’t worry about where the box is positioned; you can move it by hovering your cursor over it until you see the cursor turn into crosshairs, and then click and drag it to where you want it.
Make sure the text box is selected. You can tell when it’s selected because you will see its resize handles on the edges and corners.

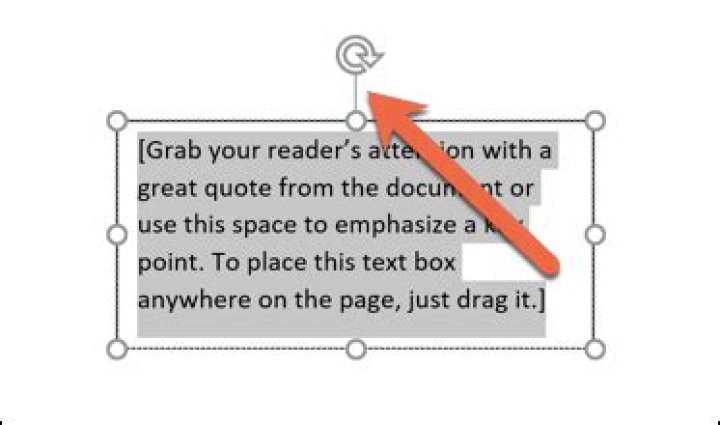

What you will also see is the rotate handle (see above). Click on the rotate handle and drag to the left. This rotates the text in an anticlockwise direction. Click and drag to the right to rotate in a clockwise direction. Either way, you have your diagonal text.
If there is a border on the text box that you want to remove, right click on the box and select Format Shape.
In the format shape panel that opens, expand Line and select No line. The border on the text box is removed, and then you have beautiful diagonal text.
If you want diagonal text that is more flashy, you can always use WordArt. The process is the same: go to the Insert tab, but this time click on WordArt in the Text group. Choose the style you want to use and then start typing in the box. The same principle applies when rotating the text, because it actually resides in a text box, as in the previous example.
It’s easy, not just on Windows 10, to create a diagonal text in Word!
Content / Solution / Tip:
1.) . The insertion of the rotated text!
2.) . text box or Word Art!
You can use this easy and fast solution to create a diagonal text in Word, even on older versions of Microsoft’s Windows operating systems, whether it’s a Windows desktop, tablet, Surface Pro / Go, or even a server operating system.
1.) The insertion of the rotated text!
1. In Microsoft Word, click the Insert tab .
2. In the Text group, click Text Box and select the text box style you want. Alternatively, you can click Word-style and choose your preferred graphic style.
| (Image-1) Diagonal Text in Word on Windows 10! |
3. Enter the text you want to make diagonal.
| (Image-2) Create a Diagonal ergo Rotate Text in Word! |
4. Click and drag the green circle over the text box, or the WordArt shape to rotate the object. Hold down the Shift key to limit the rotation to larger steps. Release the mouse button when you have the desired diagonal angle. Alternatively, in the Arrange group, you can click the Rotate icon and enter a specific rotation level in the Rotation box. Click “OK” to save your settings.
5. Click and drag the border around the text box or WordArt shape to move the text.
6. Right-click the text frame and select Format Shape. In the left pane, click Line Color, and in the right pane, select No Line. Click “Close” to remove the frame.
2.) Text field or Word Art!
WordArt is better if you want a nice graphic representation of the text. Text fields are better if the text should have a normal look.
| (Image-3) Insert a Diagonal Text Box in Word! |
Shooting Info:
If you want to create a diagonal text in Microsoft Word, the text should always be in a text box, or as a separate Word Art object. Creating these text formats lets you rotate the text without changing the rest of your document. WordArt is better if you want a nice graphical representation of text. Text fields are better if the text should have a normal look. Most text boxes have a border, but they can be deleted for seamless integration with your other text.
Updated on: 21 June 2020 10:49 Windows
It’s not just on Windows 10 to create a diagonal text in Word!
You can use this simple and fast solution to create a diagonal text in Word easily on older versions of Microsoft’s Windows operating systems, whether it’s a Windows desktop, tablet, Surface Pro / Go, or even a server operating system.
Content / Solution / Tip:
1.) . Insert the rotated text!
2.) . text box or Word Art!
1.) Insert the rotated text!
1. In Microsoft Word, click the Insert tab .
2. In the Text group, click Text Box and select the text box style you want. Alternatively, you can click Word-style and choose your preferred graphic style.
| (Image-1) Diagonal Rotated Text in MS-Word! |
3. Enter the text you want to make diagonal.
| (Image-2) Enter the rotated Text in Word! |
4. Click and drag the green circle over the text box or WordArt shape to rotate the object. Hold down the Shift key to limit the rotation to larger steps. Release the mouse button when you have the desired diagonal angle. Alternatively, in the Arrange group, you can click the Rotate icon and enter a specific rotation level in the Rotation box. Click “OK” to save your settings.
5. Click and drag the border around the text box or WordArt shape to move the text.
6. Right-click the text frame and select Format Shape. In the left pane, click Line Color, and in the right pane, select No Line. Click “Close” to remove the frame.
2.) Text field or Word Art!
WordArt is better if you want a nice graphical representation of text. Text fields are better if the text should have a normal look.
| (Image-3) Word-Art versus Text-Box in MS Word! |
If you want to create diagonal text in Microsoft Word, the text should always be in a text box or as a separate Word Art object. Creating these text formats lets you rotate the text without changing the rest of your document. WordArt is better if you want a nice graphical representation of text. Text fields are better if the text should have a normal look. Most text boxes have a border, but they can be deleted for seamless integration with your other text.
If you’re looking to add a little bit of pizzazz or graphic design elements to your Word document, you can easily create diagonal text using the text box and WordArt options. In this article, we’ll show you exactly how to make diagonal text in Word.
How to Make Diagonal Text in Word with a Text Box
One of the easiest ways to make diagonal text in Word is with a text box. To do so, you need to make a text box first!
Switch to the “Insert” menu.
Click the “Text Box” button.
Your text box will now appear in Word. You can double-click the text box to type any text you’d like.
To adjust the angle of your text box, click anywhere in the box. You’ll see a semicircular “Rotate” arrow at the top of the box.
Click and hold the arrow, and then drag to rotate your text box in whichever direction you’d like.
Presto! Diagonal text.
How to Make Diagonal Text in Word with WordArt
If you want your text to be even fancier, you can use WordArt! WordArt allows you to insert stylish text AND make it diagonal.
Switch to the “Insert” menu.
Click the “WordArt” button.
Select the style of text you’d like to insert. The menu shows how the text will appear in your document.
Insert your WordArt of choice. Then, click and hold on the semicircular arrow at the top of the box.
Rotate away in whatever direction you’d like.
Now you have beautiful, diagonal text!
Rotate to a Specific Angle
Have a text box or WordArt that you need to rotate to a specific angle? No problem; Word can do that, too.
Start by selecting the text box or WordArt object in your document.
On the Drawing Tools > Format menu, click the “Rotate” button and then click “More Rotation Options” on the drop-down menu.
The Layout window that opens should default to the “Size” tab. Set the “Rotation” value to whatever degree of clockwise rotation you want (you can use negative numbers to rotate counterclockwise) and then click “OK.”
Are you exploring ways to enhance a graphical presentation, make your word document more appealing, trying to make the text diagonal or be it a simple diagonal display of watermark across each page of your document? Look no further, In Microsoft Word, a text box can do all of that and a lot more.
In Word, the text box can turn out to be a graphic element to enhance a written document. But before you can become a text box expert, let us play around this tool.
Making Diagonal Text Using a Text Box
Easiest way to start is to insert your text into a text box and then rotate the text box. To do so:
Go to the Insert tab and in the Text, group click Text Box
From the drop-down gallery select Simple Text Box.
The text box will appear on your Word document with some default text in it. Double click to override the default text with your own text. Once you are done typing inside the text box you can also spruce up the text the very same way as any other text in your Word document. Fine tune the text using options provided in the Font and Paragraph section.
Adjusting to Diagonal
Click anywhere inside the text box to adjust the angle of your text box. In our case let us make it diagonal.
Do you see a semi-circular arrow on top of the text box? Now use this semi-circular arrow at the top of the box to rotate your text to make it diagonal.
Little things to confirm make sure the text box is selected. You can easily notice if the text box is selected by noticing the resizing handles on the edges and corners.
Click and hold the semi-circular arrow, and then drag to rotate your text box. You can decide to move it in clockwise or anticlockwise direction the way you would like your text to appear.
Either way you get your desired diagonal text.
Now if you do not like the placement of your text box, try moving the text box by simply hovering your cursor over it until you see the cursor turn into a four way directional arrow , and then click and drag it to your desired section in the word document.
If you do not like to see borders on the text box, you can easily get rid of them, right click on the text box and select Format Shape.
A detailed and independent look at Windows 10, especially for Microsoft Office.
Fully up-to-date with coverage of the May 2020 major update of Windows 10.
This 1,000 pages, 40 chapter book shows you important features and details for Windows 10 users.
In the format shape, expand the Line option and select No line.
The border disappears from the text, and all you get is a lovely diagonal text without any borders.
Making Diagonal Text with WordArt
If you are bored looking at the normal diagonal text, the good news is that Microsoft Word also provides you with the fancy of displaying diagonal text using stylized text boxes. You can do this by using WordArt.
WordArt, just like any other text box has a lot of pre-defined letters. Click the style you want to enhance your document with.
Apply the same rules you applied when inserting a text box. Go to “Insert” tab.
- Instead of selecting text box choose WordArt
- Now select one of the pre-defined styles and then start typing in the box
- You may choose to modify the size and shape of the box and modify the text that suits your requirement.
Click and hold on the semicircular arrow at the top of the box.
Rotate away in whatever direction you would like. Now you have a beautiful, diagonal text.
Remember, Word is not just limited to rotating text to diagonal angle if you have any specific angle Word can help you rotate to a specific angle as well.
Microsoft PowerPoint gives you the ability to rotate text to better fit your presentation’s slide. You can rotate text by inputting an exact degree or you can go off-script and rotate text by hand. Here’s how.
Rotating text by hand is as simple as clicking and dragging your mouse. First, open PowerPoint and insert a text box by clicking the “Text Box” option in the “Text” group of the “Insert” tab.
Your cursor will turn into a downward-pointing arrow. Click and drag your mouse to draw the text box and then type text.
After you’ve typed your text, click and drag the curved arrow above the text box to rotate the text.
Rotating text by hand is good if you have an idea of the position the text should be without needing to have the text at an exact degree. However, in some cases, you may require the text to be at a specific degree, in which case you can specify the number.
To do so, click and highlight the text box you want to rotate. Next, in the “Format” tab, click the “Rotate” option in the “Arrange” group.
A drop-down menu will appear with a few options to rotate your text. The first two options will rotate the text box right or left by 90 degrees from its current position. The next two options will flip the text box vertically or horizontally, respectively. If you want to input an exact degree, click “More Rotation Options.”
The “Format Shape” pane will open on the right-hand side of the window. Click the up and down arrows in the “Rotation” box to adjust the degree in which the text is rotated, or just type the measurement number.
The text box will now rotate to the inputted degree.
Now that you know how to rotate text in PowerPoint, you’re one step closer to creating the perfect slide for your presentation. Note that you can use these same steps to rotate any object in PowerPoint—it’s not just for text!
If you want to reformat your tables in Microsoft Word quickly, you can create diagonally split cells. This is a line that goes from the top of one side of the cell to the bottom of the opposite side, or the other way around. This creates a single diagonal line going across a single cell in a table. Split cells allow you to create an additional column or row on a cell so you don’t have to create additional rows or columns in the table and change the whole formatting. However, not everyone knows how to use a diagonally split cell or how to go about doing it in Word. So here’s a method to diagonally split cells in your Word document.
Insert a Table in Word
To create a diagonally split cell in Word, first insert a table in your document. Then, select the cell you want to diagonally split. Then, go to the Design tab under the Table Tools, go the Borders option.
Under the Borders option, you can see the many ways you can split cells and how to format borders. For diagonally split cells, you will see two options: diagonal down border and diagonal up border. You can choose either one depending on your need.
Add Data to Your Diagonally Split Cell
Now what you have to remember is that a diagonally split cell has a cosmetic function. It allows you to add an extra row or column on one single cell without affecting the rest of the table, such as adding extra rows or columns.
The trick with a diagonally split cell, however, is to make sure that your data, whether it be text or number, be easily readable. In order to do this, you have to click the cell you have just split. Then, go to the Home tab in the Ribbon. On the Font toolbox, look for the subscript and superscript font tool. This should be next to the strikethrough text style.
In the lower corner of the split cell, click the subscript button and enter your text. Then, use the space bar to create spaces to transfer to the other side of the split cell. Here, click the superscript button and type the text you want into the upper part of the split cell.
Both superscript and subscript fonts have a relatively smaller font. Whether you have a long line of text or not, it’s best to adjust your font sizes accordingly to make sure that your text fits well and is still readable. If the alignment breaks, decrease the space between your superscript and subscript texts.
Creating a diagonally split cell in Word is a hack that allows you to change the formatting of your table. Remember, the amount or length of text or numbers that you can type into this split cell is limited, compared to horizontally or vertically split cells.
If you want to add more text, you can also use a text box and insert it into the split cell. However, this will make managing the table much more difficult. You can only do this hack when really necessary and if you have the time to fix the formatting whenever alignments break or when other elements in your table become affected.
A good table heading will clearly indicate what information this table is going to tell us. If we want to create a diagonal table heading in Word, normally we may have to draw a diagonal line to divide the upper left cell diagonally. But with Kutools for Word’s Diagonal Header utility, you can quickly create a diagonal table heading and write diagonal text in tables in Word.
Recommended Productivity Tools for Word
If you want to quickly format diagonal heading and write diagonal text with built-in table headings, you can get it done as follows:
1. Put the cursor in the cell as shown in the below screenshot, and then applying this utility by clicking Kutools Plus > Diagonal Header.
2. In the Diagonal Table Header dialog box, please specify the diagonal table header style, the font size for the diagonal text and type in the diagonal text as shown in the below screenshot. Then click OK button to create diagonal table header and diagonal text.
3. You will see the result as shown in the below screenshot.
Tip: There are other types of diagonal heading styles.
Kutools for Word frees you from performing time-consuming operations in Word;
With bundles of handy tools for Word 2019, 2016, 2013, 2010, 2007, 2003 and Office 365;
Easy to use and install in Windows XP, Windows 7, Windows 8 / 10 and Windows Vista;
MS Excel is MS Office application packages’ spreadsheet editor. MS Excel is one of the most commonly used applications for handling data spread-sheets. The Excel spread sheets are the documents that you will sooner or later switch into, for your domestic, office or organization’s use. This miraculous program has many mathematical, statistical, and sorting functions that can be implemented on the spread sheets, and in turn processes the data to arrange them according to any desired format and category.
MS Excel also has some features and functionalities that are quite useful when implemented in the spread-sheet document. The program has some really efficient formatting and orientation options that can make the document easy for editing and viewing. All you need to have is proper information and knowledge to do so.
Suppose you want to align a text diagonally facing the north-east direction. You may want to do so in order to allow the document to give a more organized and managed look and feel.
If you wish to align the document diagonally, you must follow the below given instructions to do so.
- ■Initialize the MS Excel program using any account.
■Open the target spread sheet.
■On the sheet, select the text of row(s)/column(s) that is to be aligned diagonally.
■Upon selection, in the Alignment section of the ribbon, click the Orientation button.
■From the drop-down that appears, you can select either Rotate Text UP or Rotate Text Down.
■In order to specify a particular inclination angle manually, select Format Cell Alignment.
■On the Format Cells window, under the Alignment tab, in the Orientation
section, enter 45 degrees in the Degrees input box.
■Hit OK to save the changes.
Once you do so, the selected text will get aligned diagonally. Do not forget to MERGE & CENTER the rows because the diagonal text will surely require some additional space to accommodate itself.
